CPRuleEditor Class Reference

A view for creating and configuring criteria. More...

#import <CPRuleEditor.h>

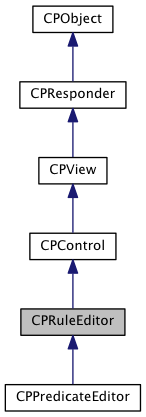

Inheritance diagram for CPRuleEditor:

Instance Methods
Configuring a Rule Editor
(id)	- delegate
	Returns the receiver’s delegate. More...
(void)	- setDelegate:
	Sets the receiver’s delegate. More...
(BOOL)	- isEditable
	Returns a Boolean value that indicates whether the receiver is editable. More...
(void)	- setEditable:
	Sets whether the receiver is editable. More...
(CPRuleEditorNestingMode)	- nestingMode
	Returns the nesting mode for the receiver. More...
(void)	- setNestingMode:
	Sets the nesting mode for the receiver. More...
(BOOL)	- canRemoveAllRows
	Returns a Boolean value that indicates whether all the rows can be removed. More...
(void)	- setCanRemoveAllRows:
	Sets whether all the rows can be removed. More...
(BOOL)	- allowsEmptyCompoundRows
	Returns a Boolean value that indicates whether compounds rows can be childless. More...
(void)	- setAllowsEmptyCompoundRows:
	Sets whether compounds rows can be childless. More...
(CPInteger)	- rowHeight
	Returns the row height for the receiver. More...
(void)	- setRowHeight:
	Sets the row height for the receiver. More...
Working with Formatting
(CPDictionary)	- formattingDictionary
	Returns the formatting dictionary for the receiver. More...
(void)	- setFormattingDictionary:
	Sets the formatting dictionary for the receiver. More...
(CPString)	- formattingStringsFilename
	Returns the name of the strings file for the receiver. More...
(void)	- setFormattingStringsFilename:
	Sets the name of the strings file used for formatting. More...
Providing Data
(void)	- reloadCriteria
	Instructs the receiver to refetch criteria from its delegate. You can use this method to indicate that the available criteria may have changed and should be refetched from the delegate and the popups recalculated. More...
(void)	- setCriteria:andDisplayValues:forRowAtIndex:
	Modifies the row at a given index to contain the given items and values. More...
(id)	- criteriaForRow:
	Returns the currently chosen items for a given row. More...
Working with the Selection
(CPMutableArray)	- displayValuesForRow:
	Returns the chosen values for a given row. More...
(int)	- numberOfRows
	Returns the number of rows in the receiver. More...
(int)	- parentRowForRow:
	Returns the index of the parent of a given row. More...
(CPRuleEditorRowType)	- rowTypeForRow:
	Returns the type of a given row. More...
(CPIndexSet)	- subrowIndexesForRow:
	Returns the immediate subrows of a given row. More...
(CPIndexSet)	- selectedRowIndexes
	Returns the indexes of the receiver’s selected rows. More...
(void)	- selectRowIndexes:byExtendingSelection:
	Sets in the receiver the indexes of rows that are selected. More...
Manipulating Rows
(void)	- addRow:
	Adds a row to the receiver. More...
(void)	- insertRowAtIndex:withType:asSubrowOfRow:animate:
	Adds a new row of a given type at a given location. More...
(void)	- removeRowAtIndex:
	Removes the row at a given index. More...
(void)	- removeRowsAtIndexes:includeSubrows:
	Removes the rows at a given index. More...
Working with Predicates
(CPPredicate)	- predicate
	Returns the predicate for the receiver. More...
(void)	- reloadPredicate
	Instructs the receiver to regenerate its predicate by invoking the corresponding delegate method. You typically invoke this method because something has changed (for example, a view's value). More...
(CPPredicate)	- predicateForRow:
	Returns the predicate for a given row. More...
Supporting Bindings
(Class)	- rowClass
	Returns the class used to create a new row in the “rows” binding. More...
(void)	- setRowClass:
	Sets the class to use to create a new row in the "rows” binding. More...
(CPString)	- rowTypeKeyPath
	Returns the key path for the row type. More...
(void)	- setRowTypeKeyPath:
	Sets the key path for the row type. More...
(CPString)	- subrowsKeyPath
	Returns the key path for the subrows. More...
(void)	- setSubrowsKeyPath:
	Sets the key path for the subrows. More...
(CPString)	- criteriaKeyPath
	Returns the criteria key path. More...
(void)	- setCriteriaKeyPath:
	Sets the key path for the criteria. More...
(CPString)	- displayValuesKeyPath
	Returns the display values key path. More...
(void)	- setDisplayValuesKeyPath:
	Sets the key path for the display values. More...
Configuring Rows Animation
(id)	- animation
	Returns the current animation for the receiver. More...
(void)	- setAnimation:
	Sets the current animation for the receiver. More...
Instance Methods inherited from CPControl
(SEL)	- action
(CPTextAlignment)	- alignment
(BOOL)	- continueTracking:at:
(double)	- doubleValue
(void)	- encodeWithCoder:
(float)	- floatValue
(CPFont)	- font
(CPFormatter)	- formatter
(void)	- highlight:
(CPCellImagePosition)	- imagePosition
(CPImageScaling)	- imageScaling
(id)	- initWithCoder:
(id)	- initWithFrame:
(int)	- integerValue
(int)	- intValue
(BOOL)	- isContinuous
(BOOL)	- isEnabled
(BOOL)	- isHighlighted
(CPLineBreakMode)	- lineBreakMode
(void)	- mouseDown:
(unsigned)	- mouseDownFlags
(void)	- mouseEntered:
(void)	- mouseExited:
(int)	- nextState
(id)	- objectValue
(void)	- performClick:
(BOOL)	- sendAction:to:
(int)	- sendActionOn:
(BOOL)	- sendsActionOnEndEditing
(void)	- setAction:
(void)	- setAlignment:
(void)	- setContinuous:
(void)	- setDoubleValue:
(void)	- setEnabled:
(void)	- setFloatValue:
(void)	- setFont:
(void)	- setFormatter:
(void)	- setHighlighted:
(void)	- setImagePosition:
(void)	- setImageScaling:
(void)	- setIntegerValue:
(void)	- setIntValue:
(void)	- setLineBreakMode:
(void)	- setObjectValue:
(void)	- setSendsActionOnEndEditing:
(void)	- setState:
(void)	- setStringValue:
(void)	- setTarget:
(void)	- setTextColor:
(void)	- setTextShadowColor:
(void)	- setTextShadowOffset:
(void)	- setVerticalAlignment:
(BOOL)	- startTrackingAt:
(void)	- stopTracking:at:mouseIsUp:
(CPString)	- stringValue
(void)	- takeDoubleValueFrom:
(void)	- takeFloatValueFrom:
(void)	- takeIntegerValueFrom:
(void)	- takeIntValueFrom:
(void)	- takeObjectValueFrom:
(void)	- takeStringValueFrom:
(id)	- target
(CPColor)	- textColor
(void)	- textDidBeginEditing:
(void)	- textDidChange:
(void)	- textDidEndEditing:
(CPColor)	- textShadowColor
(CGSize)	- textShadowOffset
(void)	- trackMouse:
(BOOL)	- tracksMouseOutsideOfFrame
(void)	- unhighlightButtonTimerDidFinish:
(CPTextVerticalAlignment)	- verticalAlignment
Instance Methods inherited from CPView
(BOOL)	- acceptsFirstMouse:
(void)	- addSubview:
(void)	- addSubview:positioned:relativeTo:
(CGRect)	- adjustScroll:
(float)	- alphaValue
(BOOL)	- autoresizesSubviews
(unsigned)	- autoresizingMask
(BOOL)	- autoscroll:
(CPColor)	- backgroundColor
(CGRect)	- bounds
(CGPoint)	- boundsOrigin
(CGSize)	- boundsSize
(BOOL)	- canBecomeKeyView
(CGPoint)	- center
(BOOL)	- clipsToBounds
(CGPoint)	- convertPoint:fromView:
(CGPoint)	- convertPoint:toView:
(CGPoint)	- convertPointFromBase:
(CGPoint)	- convertPointToBase:
(CGRect)	- convertRect:fromView:
(CGRect)	- convertRect:toView:
(CGRect)	- convertRectFromBase:
(CGRect)	- convertRectToBase:
(CGSize)	- convertSize:fromView:
(CGSize)	- convertSize:toView:
(CPView)	- createEphemeralSubviewNamed:
(id)	- currentValueForThemeAttribute:
(void)	- didAddSubview:
(void)	- display
(void)	- displayIfNeeded
(void)	- displayIfNeededInRect:
(void)	- displayRect:
(void)	- displayRectIgnoringOpacity:inContext:
(void)	- dragImage:at:offset:event:pasteboard:source:slideBack:
(void)	- dragView:at:offset:event:pasteboard:source:slideBack:
(void)	- drawRect:
(CPMenuItem)	- enclosingMenuItem
(CPScrollView)	- enclosingScrollView
(BOOL)	- enterFullScreenMode
(BOOL)	- enterFullScreenMode:withOptions:
(CPView)	- ephemeralSubviewNamed:
(void)	- exitFullScreenMode
(void)	- exitFullScreenModeWithOptions:
(CGRect)	- frame
(CGPoint)	- frameOrigin
(CGSize)	- frameSize
(BOOL)	- hasThemeAttribute:
(BOOL)	- hasThemeState:
(CPView)	- hitTest:
(BOOL)	- hitTests
(id)	- init
(BOOL)	- inLiveResize
(BOOL)	- isDescendantOf:
(BOOL)	- isFlipped
(BOOL)	- isHidden
(BOOL)	- isHiddenOrHasHiddenAncestor
(BOOL)	- isInFullScreenMode
(BOOL)	- isOpaque
(CALayer)	- layer
(CPView)	- layoutEphemeralSubviewNamed:positioned:relativeToEphemeralSubviewNamed:
(void)	- layoutIfNeeded
(void)	- layoutSubviews
(void)	- lockFocus
(CPMenu)	- menuForEvent:
(BOOL)	- mouseDownCanMoveWindow
(BOOL)	- needsDisplay
(BOOL)	- needsPanelToBecomeKey
(CPView)	- nextKeyView
(CPView)	- nextValidKeyView
(BOOL)	- performKeyEquivalent:
(BOOL)	- postsBoundsChangedNotifications
(BOOL)	- postsFrameChangedNotifications
(CPView)	- previousKeyView
(CPView)	- previousValidKeyView
(CGRect)	- rectForEphemeralSubviewNamed:
(void)	- reflectScrolledClipView:
(CPArray)	- registeredDraggedTypes
(void)	- registerForDraggedTypes:
(void)	- registerThemeValues:
(void)	- registerThemeValues:inherit:
(void)	- removeFromSuperview
(void)	- replaceSubview:with:
(void)	- resizeSubviewsWithOldSize:
(void)	- resizeWithOldSuperviewSize:
(void)	- rightMouseDown:
(void)	- scrollClipView:toPoint:
(void)	- scrollPoint:
(void)	- scrollRect:by:
(BOOL)	- scrollRectToVisible:
(void)	- setAlphaValue:
(void)	- setAutoresizesSubviews:
(void)	- setAutoresizingMask:
(void)	- setBackgroundColor:
(void)	- setBounds:
(void)	- setBoundsOrigin:
(void)	- setBoundsSize:
(void)	- setCenter:
(void)	- setClipsToBounds:
(void)	- setFrame:
(void)	- setFrameOrigin:
(void)	- setFrameSize:
(void)	- setHidden:
(void)	- setHitTests:
(void)	- setLayer:
(void)	- setNeedsDisplay:
(void)	- setNeedsDisplayInRect:
(void)	- setNeedsLayout
(void)	- setNextKeyView:
(void)	- setPostsBoundsChangedNotifications:
(void)	- setPostsFrameChangedNotifications:
(void)	- setSubviews:
(void)	- setTag:
(void)	- setTheme:
(void)	- setThemeClass:
(BOOL)	- setThemeState:
(void)	- setToolTip:
(void)	- setValue:forThemeAttribute:
(void)	- setValue:forThemeAttribute:inState:
(void)	- setWantsLayer:
(CPArray)	- subviews
(CPView)	- superview
(CPInteger)	- tag
(CPTheme)	- theme
(CPString)	- themeClass
(unsigned)	- themeState
(CPString)	- toolTip
(void)	- unlockFocus
(void)	- unregisterDraggedTypes
(BOOL)	- unsetThemeState:
(id)	- valueForThemeAttribute:
(id)	- valueForThemeAttribute:inState:
(void)	- viewDidChangeTheme
(void)	- viewDidEndLiveResize
(void)	- viewDidHide
(void)	- viewDidMoveToSuperview
(void)	- viewDidMoveToWindow
(void)	- viewDidUnhide
(void)	- viewWillDraw
(void)	- viewWillMoveToSuperview:
(void)	- viewWillMoveToWindow:
(void)	- viewWillStartLiveResize
(CPView)	- viewWithTag:
(CGRect)	- visibleRect
(BOOL)	- wantsLayer
(void)	- willRemoveSubview:
(CPWindow)	- window
Instance Methods inherited from CPResponder
(BOOL)	- acceptsFirstResponder
(BOOL)	- becomeFirstResponder
(void)	- doCommandBySelector:
(void)	- flagsChanged:
(void)	- insertBackTab:
(void)	- insertLineBreak:
(void)	- insertNewline:
(void)	- insertTab:
(void)	- insertText:
(void)	- interpretKeyEvents:
(void)	- keyDown:
(void)	- keyUp:
(CPMenu)	- menu
(void)	- mouseDragged:
(void)	- mouseMoved:
(void)	- mouseUp:
(CPResponder)	- nextResponder
(void)	- noResponderFor:
(BOOL)	- resignFirstResponder
(void)	- rightMouseUp:
(void)	- scrollWheel:
(void)	- setMenu:
(void)	- setNextResponder:
(BOOL)	- tryToPerform:with:
(CPUndoManager)	- undoManager
Instance Methods inherited from CPObject
(void)	- addObserver:forKeyPath:options:context:
(void)	- applyChange:toKeyPath:
(id)	- autorelease
(id)	- awakeAfterUsingCoder:
(void)	- awakeFromCib
(void)	- bind:toObject:withKeyPath:options:
(Class)	- classForCoder
(Class)	- classForKeyedArchiver
(CPString)	- className
(id)	- copy
(void)	- dealloc
(CPString)	- description
(CPDictionary)	- dictionaryWithValuesForKeys:
(void)	- didChange:valuesAtIndexes:forKey:
(void)	- didChangeValueForKey:
(void)	- didChangeValueForKey:withSetMutation:usingObjects:
(void)	- doesNotRecognizeSelector:
(CPArray)	- exposedBindings
(id)	- forwardingTargetForSelector:
(void)	- forwardInvocation:
(unsigned)	- hash
(BOOL)	- implementsSelector:
(CPDictionary)	- infoForBinding:
(BOOL)	- isEqual:
(BOOL)	- isKindOfClass:
(BOOL)	- isMemberOfClass:
(BOOL)	- isProxy
(IMP)	- methodForSelector:
(CPMethodSignature)	- methodSignatureForSelector:
(id)	- mutableArrayValueForKey:
(id)	- mutableArrayValueForKeyPath:
(id)	- mutableCopy
(id)	- mutableSetValueForKey:
(id)	- mutableSetValueForKeyPath:
(id)	- performSelector:
(id)	- performSelector:withObject:
(id)	- performSelector:withObject:withObject:
(id)	- performSelector:withObjects:
(void)	- release
(void)	- removeObserver:forKeyPath:
(id)	- replacementObjectForArchiver:
(id)	- replacementObjectForCoder:
(id)	- replacementObjectForKeyedArchiver:
(BOOL)	- respondsToSelector:
(id)	- retain
(id)	- self
(void)	- setValue:forKey:
(void)	- setValue:forKeyPath:
(void)	- setValue:forUndefinedKey:
(void)	- setValuesForKeysWithDictionary:
(CPString)	- UID
(void)	- unbind:
(Class)	- valueClassForBinding:
(id)	- valueForKey:
(id)	- valueForKeyPath:
(id)	- valueForUndefinedKey:
(void)	- willChange:valuesAtIndexes:forKey:
(void)	- willChangeValueForKey:
(void)	- willChangeValueForKey:withSetMutation:usingObjects:

Additional Inherited Members
Class Methods inherited from CPControl
(void)	+ initialize
(CPDictionary)	+ themeAttributes
Class Methods inherited from CPView
(CPMenu)	+ defaultMenu
(CPString)	+ defaultThemeClass
(CPSet)	+ keyPathsForValuesAffectingBounds
(CPSet)	+ keyPathsForValuesAffectingFrame
Class Methods inherited from CPObject
(BOOL)	+ accessInstanceVariablesDirectly
(id)	+ alloc
(id)	+ allocWithCoder:
(BOOL)	+ automaticallyNotifiesObserversForKey:
(Class)	+ class
(void)	+ exposeBinding:
(IMP)	+ instanceMethodForSelector:
(BOOL)	+ instancesRespondToSelector:
(BOOL)	+ isSubclassOfClass:
(CPSet)	+ keyPathsForValuesAffectingValueForKey:
(void)	+ load
(id)	+ new
(void)	+ setVersion:
(Class)	+ superclass
(int)	+ version
Instance Variables inherited from CPObject
Class	isa

Detailed Description

A view for creating and configuring criteria.

A CPRuleEditor object is a view that allows the user to visually create and configure a list of options which are expressed by the rule editor as a predicate (see Predicate documentation). The view has a delegate which offers a tree of choices to the view. The choices are presented by the view to the user as a row of popup buttons, static text fields, and custom views. Each row in the list represents a particular path down the tree of choices.

CPRuleEditor exposes one binding, rows. You can bind rows to an ordered collection (such as an instance of CPMutableArray). Each object in the collection should have the following properties:

@"rowType"
An integer representing the type of the row (CPRuleEditorRowType).

@"subrows"
An ordered to-many relation (such as an instance of CPMutableArray) containing the directly nested subrows for the given row.

@"displayValues"
An ordered to-many relation containing the display values for the row.

@"criteria"
An ordered to-many relation containing the criteria for the row.

Definition at line 2 of file CPRuleEditor.h.

Method Documentation

- (void) addRow: (id)  sender

implementation

Adds a row to the receiver.

Parameters

sender

Typically the object that sent the message.

See also

- insertRowAtIndex:withType:asSubrowOfRow:animate:

Definition at line 643 of file CPRuleEditor.j.

- (BOOL) allowsEmptyCompoundRows

implementation

Returns a Boolean value that indicates whether compounds rows can be childless.

Returns

YES if compounds rows can be childless, otherwise NO.

See also

- setAllowsEmptyCompoundRows:

Definition at line 304 of file CPRuleEditor.j.

- (id) animation

implementation

Returns the current animation for the receiver.

Returns

The current animation for the receiver.

See also

- setAnimation:

Definition at line 1038 of file CPRuleEditor.j.

- (BOOL) canRemoveAllRows

implementation

Returns a Boolean value that indicates whether all the rows can be removed.

Returns

YES if all the rows can be removed, otherwise NO.

See also

- setCanRemoveAllRows:

Definition at line 283 of file CPRuleEditor.j.

- (id) criteriaForRow: (int)  row

implementation

Returns the currently chosen items for a given row.

Parameters

row	The index of a row in the receiver.

Returns

The currently chosen items for row row.

Definition at line 456 of file CPRuleEditor.j.

- (CPString) criteriaKeyPath

implementation

Returns the criteria key path.

Returns

The criteria key path. The default value is "criteria". The key path is used to get the criteria for a row in the "rows" binding. The criteria objects are what the delegate returns from -#ruleEditor:child:forCriterion:withRowType: . The corresponding property should be an ordered to-many relationship.

See also

- setCriteriaKeyPath:

Definition at line 990 of file CPRuleEditor.j.

- (id) delegate

implementation

Returns the receiver’s delegate.

Returns

The receiver’s delegate.

See also

- setDelegate:

Definition at line 197 of file CPRuleEditor.j.

- (CPMutableArray) displayValuesForRow: (int)  row

implementation

Returns the chosen values for a given row.

Parameters

row	The index of a row in the receiver.

Returns

The chosen values (strings, views, or menu items) for row row. The values returned are the same as those returned from the delegate method -#ruleEditor:displayValueForCriterion:inRow:

Definition at line 475 of file CPRuleEditor.j.

- (CPString) displayValuesKeyPath

implementation

Returns the display values key path.

Returns

The display values key path. The default is "displayValues". The key path is used to get the display values for a row in the "rows" binding. The display values are what the delegate returns from -#ruleEditor:displayValueForCriterion:inRow: The corresponding property should be an ordered to-many relationship.

See also

- setDisplayValuesKeyPath:

Definition at line 1013 of file CPRuleEditor.j.

- (CPDictionary) formattingDictionary

implementation

Returns the formatting dictionary for the receiver.

Returns

The formatting dictionary for the receiver.

See also

- setFormattingDictionary:

- setFormattingStringsFilename:

Definition at line 354 of file CPRuleEditor.j.

- (CPString) formattingStringsFilename

implementation

Returns the name of the strings file for the receiver.

Returns

The name of the strings file for the receiver.

See also

- setFormattingStringsFilename:

Definition at line 377 of file CPRuleEditor.j.

- (void) insertRowAtIndex: (int)  rowIndex withType: (unsigned int)  rowType asSubrowOfRow: (int)  parentRow animate: (BOOL)  shouldAnimate

implementation

Adds a new row of a given type at a given location.

Parameters

rowIndex	The index at which the new row should be inserted. rowIndex must be greater than parentRow, and much specify a row that does not fall amongst the children of some other parent.
rowType	The type of the new row.
parentRow	The index of the row of which the new row is a child. Pass -1 to indicate that the new row should be a root row.
shouldAnimate	YES if creation of the new row should be animated, otherwise NO.

Note

Currently, shouldAnimate has no effect, rows are always animated when calling this method.

See also

- addRow:

Definition at line 686 of file CPRuleEditor.j.

- (BOOL) isEditable

implementation

Returns a Boolean value that indicates whether the receiver is editable.

Returns

YES if the receiver is editable, otherwise NO. The default is YES.

See also

- setEditable:

Definition at line 228 of file CPRuleEditor.j.

- (CPRuleEditorNestingMode) nestingMode

implementation

Returns the nesting mode for the receiver.

Returns

The nesting mode for the receiver.

See also

- setNestingMode:

Definition at line 256 of file CPRuleEditor.j.

- (int) numberOfRows

implementation

Returns the number of rows in the receiver.

Returns

The number of rows in the receiver.

Definition at line 488 of file CPRuleEditor.j.

- (int) parentRowForRow: (int)  rowIndex

implementation

Returns the index of the parent of a given row.

Parameters

rowIndex

The index of a row in the receiver.

Returns

The index of the parent of the row at rowIndex. If the row at rowIndex is a root row, returns -1.

Definition at line 498 of file CPRuleEditor.j.

- (CPPredicate) predicate

implementation

Returns the predicate for the receiver.

Returns

If the delegate implements -#ruleEditor:predicatePartsForCriterion:withDisplayValue:inRow:, the predicate for the receiver. If not, or if the delegate does not return enough parts to construct a full predicate, returns nil.

See also

- predicateForRow:

Definition at line 772 of file CPRuleEditor.j.

- (CPPredicate) predicateForRow: (CPInteger)  aRow

implementation

Returns the predicate for a given row.

Parameters

aRow	The index of a row in the receiver.

Returns

The predicate for the row at aRow. You should rarely have a need to call this directly, but you can override this method in a subclass to perform specialized predicate handling for certain criteria or display values.

Definition at line 792 of file CPRuleEditor.j.

- (void) reloadCriteria

implementation

Instructs the receiver to refetch criteria from its delegate. You can use this method to indicate that the available criteria may have changed and should be refetched from the delegate and the popups recalculated.

Definition at line 420 of file CPRuleEditor.j.

- (void) reloadPredicate

implementation

Instructs the receiver to regenerate its predicate by invoking the corresponding delegate method. You typically invoke this method because something has changed (for example, a view's value).

Definition at line 781 of file CPRuleEditor.j.

- (void) removeRowAtIndex: (int)  rowIndex

implementation

Removes the row at a given index.

Parameters

rowIndex

The index of a row in the receiver.

Warning

Raises a CPRangeException if rowIndex is less than 0 or greater than or equal to the number of rows.

See also

- removeRowsAtIndexes:includeSubrows:

Definition at line 705 of file CPRuleEditor.j.

- (void) removeRowsAtIndexes: (CPIndexSet)  rowIndexes includeSubrows: (BOOL)  includeSubrows

implementation

Removes the rows at a given index.

Parameters

rowIndexes	Indexes of one or more rows in the receiver.
includeSubrows	If YES, then sub-rows of deleted rows are also deleted; if NO, then each sub-row is adopted by its first non-deleted ancestor, or becomes a root row.

Warning

Raises a CPRangeException if any index in rowIndexes is less than 0 or greater than or equal to the number of rows.

See also

- removeRowAtIndex:

Definition at line 722 of file CPRuleEditor.j.

- (Class) rowClass

implementation

Returns the class used to create a new row in the “rows” binding.

Returns

The class used to create a new row in the "rows" binding.

See also

- setRowClass:

Definition at line 919 of file CPRuleEditor.j.

- (CPInteger) rowHeight

implementation

Returns the row height for the receiver.

Returns

The row height for the receiver.

See also

- setRowHeight:

Definition at line 325 of file CPRuleEditor.j.

- (CPRuleEditorRowType) rowTypeForRow: (int)  rowIndex

implementation

Returns the type of a given row.

Parameters

rowIndex

The index of a row in the receiver.

Returns

The type of the row at rowIndex.

Warning

Raises a CPRangeException if rowIndex is less than 0 or greater than or equal to the number of rows.

Definition at line 539 of file CPRuleEditor.j.

- (CPString) rowTypeKeyPath

implementation

Returns the key path for the row type.

Returns

The key path for the row type. The default value is "rowType". The key path is used to get the row type in the “rows” binding. The corresponding property should be a number that specifies an CPRuleEditorRowType value.

See also

- setRowTypeKeyPath:

Definition at line 944 of file CPRuleEditor.j.

- (CPIndexSet) selectedRowIndexes

implementation

Returns the indexes of the receiver’s selected rows.

Returns

The indexes of the receiver’s selected rows.

Definition at line 599 of file CPRuleEditor.j.

- (void) selectRowIndexes: (CPIndexSet)  indexes byExtendingSelection: (BOOL)  extend

implementation

Sets in the receiver the indexes of rows that are selected.

Parameters

indexes	The indexes of rows in the receiver to select.
extend	If NO, the selected rows are specified by indexes. If YES, the rows indicated by indexes are added to the collection of already selected rows, providing multiple selection.

Definition at line 609 of file CPRuleEditor.j.

- (void) setAllowsEmptyCompoundRows: (BOOL)  allows

implementation

Sets whether compounds rows can be childless.

Parameters

allows

YES if compounds rows can be childless, otherwise NO.

See also

- allowsEmptyCompoundRows

Definition at line 314 of file CPRuleEditor.j.

- (void) setAnimation: (CPViewAnimation)  animation

implementation

Sets the current animation for the receiver.

Parameters

animation

A CPViewAnimation object used to animate rows. The default is a CPViewAnimation with a 0.5s duration and a CPAnimationEaseInOut curve.

See also

- animation

Definition at line 1049 of file CPRuleEditor.j.

- (void) setCanRemoveAllRows: (BOOL)  canRemove

implementation

Sets whether all the rows can be removed.

Parameters

canRemove

YES if all the rows can be removed, otherwise NO.

See also

- canRemoveAllRows

Definition at line 293 of file CPRuleEditor.j.

- (void) setCriteria: (CPArray)  criteria andDisplayValues: (CPArray)  values forRowAtIndex: (int)  rowIndex

implementation

Modifies the row at a given index to contain the given items and values.

Parameters

criteria	The array of criteria for the row at rowIndex. Pass an empty array to force the receiver to query its delegate. This value must not be nil.
values	The array of values for the row at rowIndex. Pass an empty array to force the receiver to query its delegate. This value must not be nil.
rowIndex	The index of a row in the receiver.

It is your responsibility to ensure that each item in the array is a child of the previous item, and that the first item is a root item for the row type. If the last item has child items, then the items array will be extended by querying the delegate for child items until a childless item is reached.

Definition at line 435 of file CPRuleEditor.j.

- (void) setCriteriaKeyPath: (CPString)  keyPath

implementation

Sets the key path for the criteria.

Parameters

keyPath

The key path for the criteria.

See also

- criteriaKeyPath

Definition at line 1000 of file CPRuleEditor.j.

- (void) setDelegate: (id)  aDelegate

implementation

Sets the receiver’s delegate.

Parameters

aDelegate

The delegate for the receiver. CPRuleEditor requires a delegate that implements the required delegate methods to function.

See also

- delegate

Definition at line 208 of file CPRuleEditor.j.

- (void) setDisplayValuesKeyPath: (CPString)  keyPath

implementation

Sets the key path for the display values.

Parameters

keyPath

The key path for the the display values.

See also

- displayValuesKeyPath

Definition at line 1023 of file CPRuleEditor.j.

- (void) setEditable: (BOOL)  editable

implementation

Sets whether the receiver is editable.

Parameters

editable

YES if the receiver is editable, otherwise NO.

See also

- isEditable:

Definition at line 238 of file CPRuleEditor.j.

- (void) setFormattingDictionary: (CPDictionary)  dictionary

implementation

Sets the formatting dictionary for the receiver.

Parameters

dictionary

The formatting dictionary for the receiver. If you set the formatting dictionary with this method, it sets the current formatting strings file name to nil.

See also

- formattingDictionary

- formattingStringsFilename

Definition at line 366 of file CPRuleEditor.j.

- (void) setFormattingStringsFilename: (CPString)  stringsFilename

implementation

Sets the name of the strings file used for formatting.

Parameters

stringsFilename

The name of the strings file for the receiver. CPRuleEditor looks for a strings file with the given name in the main bundle and (if appropriate) the bundle containing the nib file from which it was loaded. If it finds a strings file resource with the given name, CPRuleEditor loads it and sets it as the formatting dictionary for the receiver. You can obtain the resulting dictionary using formattingDictionary. If you set the formatting dictionary with -setFormattingDictionary:, it sets the current formatting strings file name nil.

See also

- formattingStringsFilename

Definition at line 389 of file CPRuleEditor.j.

- (void) setNestingMode: (CPRuleEditorNestingMode)  mode

implementation

Sets the nesting mode for the receiver.

Parameters

mode	The nesting mode for the receiver. You typically set the nesting mode at view creation time and do not subsequently modify it. The default is CPRuleEditorNestingModeSimple.

See also

- nestingMode

Note

Currently CPRuleEditorNestingModeCompound is experimental.

Definition at line 268 of file CPRuleEditor.j.

- (void) setRowClass: (Class)  rowClass

implementation

Sets the class to use to create a new row in the "rows” binding.

Parameters

rowClass

The class to use to create a new row in the "rows” binding.

See also

- rowClass

Definition at line 929 of file CPRuleEditor.j.

- (void) setRowHeight: (float)  height

implementation

Sets the row height for the receiver.

Parameters

height

The row height for the receiver.

See also

- rowHeight

Definition at line 335 of file CPRuleEditor.j.

- (void) setRowTypeKeyPath: (CPString)  keyPath

implementation

Sets the key path for the row type.

Parameters

keyPath

The key path for the row type.

See also

- rowTypeKeyPath

Definition at line 954 of file CPRuleEditor.j.

- (void) setSubrowsKeyPath: (CPString)  keyPath

implementation

Sets the key path for the subrows.

Parameters

keyPath

The key path for the subrows.

See also

- subrowsKeyPath

Definition at line 977 of file CPRuleEditor.j.

- (CPIndexSet) subrowIndexesForRow: (int)  rowIndex

implementation

Returns the immediate subrows of a given row.

Parameters

rowIndex

The index of a row in the receiver, or -1 to get the top-level rows.

Returns

The immediate subrows of the row at rowIndex. Rows are numbered starting at 0.

Definition at line 560 of file CPRuleEditor.j.

- (CPString) subrowsKeyPath

implementation

Returns the key path for the subrows.

Returns

The key path for the subrows. The default value is "subrows". The key path is used to get the nested rows in the “rows” binding. The corresponding property should be an ordered to-many relationship containing additional bound row objects.

See also

- setSubrowsKeyPath:

Definition at line 967 of file CPRuleEditor.j.

---

The documentation for this class was generated from the following files:

• AppKit/CPRuleEditor/CPRuleEditor.h
• AppKit/CPRuleEditor/CPRuleEditor.j
